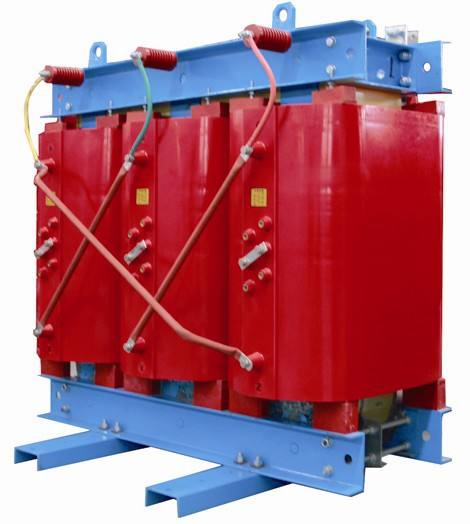

Amorphous Alloy Dry Type Power Transformer

Amorphous alloy dry-type transformers, oil free and without any combustion danger, are installed indoors or even fixed deep into the load center and thereby have an obvious energy saving effect, being suitable for the municipal development needs in a modernized city of a high load density. As the most advanced energy-saving dry-type transformer, an amorphous alloy dry type transformer may largely lower the no load loss.

On the low voltage side of this product line are foil type coils fabricated by winding copper foils; and on the high voltage side of this product line are high-voltage coils fabricated by winding F grade highly strong enameled wires. The introduction of a glass fiber intensified epoxy resin packaging structure makes it possess excellent moisture  and rupture resistance. The cores are prepared by winding amorphous alloy strips and each of it has a rectangular cross section and a four-frame and five-pole structure, with the no-load loss reduced by 3/4 that of a common dry type transformer.
